19.1   CPU, Memory and Task



CPU and memory are the resources that the system has, and it is the task or process that uses these resources to perform the works specified by the user. Therefore, it is necessary to monitor the available resources in the system and the processes that are using resources at the present time to check whether there is a problem in the current work processing state.



19.1.1  Checking System Status



19.1.1.1    "top" Command - Check Main System Information



You can use the "top" command to check the overall status of the system.



[Command Format]

top    [ options ]



[Command Overview]

    This provides real-time information about the system.

    User privilege           -- Normal user.



[Detail Description]

    "top" command provides real-time information about the operating system. It provides summary information about the entire system, as well as a list of individual processes or threads managed by the Linux kernel.

    All of the information provided here can be retrieved and adjusted by the user using the internal command line provided on the screen, and such adjustment can be stored and used again.

    The information provided here is continuously updated with new information at regular intervals.



[Main option]

-h

Print help and then exit.

-b : Batch-mode operation



Starts top in 'Batch' mode, which could be useful for sending output from top to other programs or to a file. In this mode, top will not accept input and runs until the iterations limit you've set with the '-n' Shell option or until killed.

-d : Delay-time interval as: -d ss.tt (secs.tenths)

Specifies the delay between screen updates, and overrides the corresponding value in one's personal configuration file or the startup default.  Later this can be changed with the 'd' or 's' interactive commands.

-H : Threads-mode operation



Instructs top to display individual threads.  Without this Shell option a summation of all threads in each process is shown. Later this can be changed with the 'H' interactive command.

-p : Monitor-PIDs mode as: -pN1 -pN2 ... or -pN1,N2,N3 ...

Monitor only processes with specified process IDs. This option can be given up to 20 times, or you can provide a comma delimited list with up to 20 pids. Co-mingling both approaches is permitted.

-u | -U : User-filter-mode as: -u | -U number or name

Display only processes with a user id or user name matching that given.  The '-u' option matches on effective user whereas the '-U' option matches on any user (real, effective, saved, or filesystem). The 'p', 'u' and 'U' Shell options are mutually exclusive.





[Used Example]

The following shows the result of executing the "top" command.



pi@raspberrypi ~ $ top

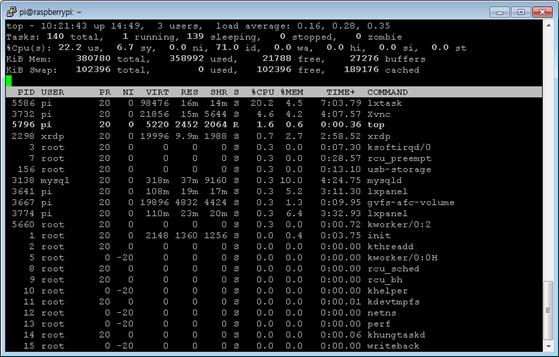

Figure 19‑1 System monitoring "top" command



You can see that the information provided on this screen is update continuously with the new contents over time, even if the user does not give special instructions.



The header section on the screen is the overall summary data, and the list section below the screen shows detailed information about individual processes or threads.



The part of screen between the header section and the list section is the internal command line. You can make the necessary commands and adjust the contents and appearance of the screen in various ways. You can also execute "kill" task, and so on if you need to terminate a particular process.



The following is a description of the information items displayed in the header.









%CPU

us

Amount allocated to the user application



sy

Amount allocated to the system application



ni

Amount allocated to nice process



id

Idle



wa

Amount allocated to the I/O waiting process



hi

Amount allocated to hardware interrupt waiting process



si

Amount allocated to software interrupt waiting process



st

hypervisor에 뺏긴 량

Amount taken by hypervisor

process 목록

PID

Process id



PPID

Parent process process id



Command

A command or program that process run



PR

Priority of process



VIRT

amount of virtual memory used



RES

Amount of resident memory in use



SHR

Amount of shared memory in use



S

Process state



TIME

CPU time used since task started

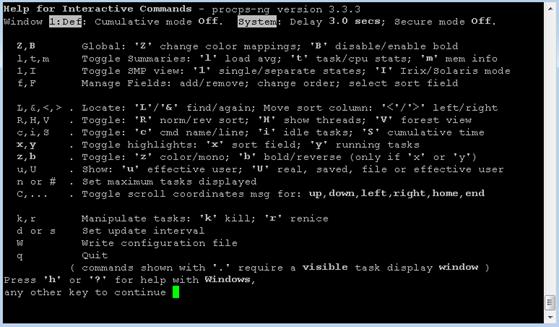

If you need detailed information about the available commands, you can use the help data. Press "h" to see a list of all available commands. If you want to save the adjusted query form and continue to use it next, you can save the setting by pressing "w". Press "q" to end program execution.







19.1.1.2    "free" Command Check Memory Status



"free" command displays information about the overall memory usage of the system.



[Command Format]

free    [ options ]



[Command Overview]

    This shows the overall memory usage of the system.

    User privilege           -- Normal user.



[Detail Description]

"free" command summarizes and displays the total amount, usage, and spare capacity for the physical memory, swap memory, and buffer/cache memory in the system.



[Main option]

--help

Print help.

-k, --kilo

Display the amount of memory in kilobytes.  This is the default.

-m, --mega

Display the amount of memory in megabytes



[Used Example]

The following is the result of executing "free" command.



pi@raspberrypi ~ $ free

             total       used       free     shared    buffers     cached

Mem:        380780     359936      20844          0      27560     187772

-/+ buffers/cache:     144604     236176

Swap:       102396          0     102396














19.1.1.3    "ps" Command Check Process Snapshot



"ps" command shows all process list information currently running on the system.



[Command Format]

ps    [ options ]



[Command Overview]

    This show all process list information currently running on the system

    User privilege           -- Normal user.



[Detail Description]

If no option is specified, it displays only the processes that the current logon user executed   and excludes processes running in the background.



[Main option]

r

Restrict the selection to only running processes.

-N, --deselect

Select all processes except those that fulfill the specified conditions (negates the selection).

-e

Select all processes.  Identical to -A.

-a

Select all processes except both session leaders (see getsid(2)) and processes not associated with a terminal.

-C cmdlist



Select by command name.  This selects the processes whose executable name is given in cmdlist.

--pid pidlist

Select by process ID.  Identical to -p and p.

--ppid pidlist

Select by parent process ID.  This selects the processes with a parent process ID in pidlist.  That is, it selects processes that are children of those listed in pidlist.

-u userlist



Select by effective user ID (EUID) or name.  This selects the processes

whose effective user name or ID is in userlist. The effective user ID describes the user whose file access permissions are used by the process (see geteuid(2)).  Identical to U and --user.

-t ttylist



Select by tty.  This selects the processes associated with the terminals given in ttylist.  Terminals (ttys, or screens for text output) can be specified in several forms: /dev/ttyS1, ttyS1, S1.  A plain "-" may be used to select processes not attached to any terminal.

-f

Do full-format listing. This option can be combined with many other UNIX-style options to add additional columns. It also causes the command arguments to be printed.  When used with -L, the NLWP (number of threads) and LWP (thread ID) columns will be added.  See the c option, the format keyword args, and the format keyword comm.



[Used Example]

The following is a result screen executing "ps" command without options. Since we are currently running "ps" command on the terminal screen, only "bash" and "ps" are listed.



pi@raspberrypi ~ $ ps

  PID TTY          TIME CMD

 5752 pts/0    00:00:01 bash

 6135 pts/0    00:00:00 ps



The following shows the process information in full with the selection condition "-a" and "-f" option.



pi@raspberrypi ~ $ ps -af

UID        PID  PPID  C STIME TTY          TIME CMD

pi        3481  3402  0 May28 tty1     00:00:01 -bash

pi        3507  3481  0 May28 tty1     00:00:00 /bin/sh /usr/bin/startx

pi        3524  3507  0 May28 tty1     00:00:00 xinit /etc/X11/xinit/xinitrc -- /etc/X11/xin

pi        3529  3524  0 May28 tty1     00:00:00 /usr/bin/ck-launch-session /usr/bin/dbus-lau

pi        3629  3529  0 May28 tty1     00:00:00 /usr/bin/lxsession -s LXDE-pi -e LXDE

pi        3632     1  0 May28 tty1     00:00:00 /usr/bin/dbus-launch --exit-with-session x-s

pi        3639  3629  0 May28 tty1     00:00:00 openbox --config-file /home/pi/.config/openb

pi        3641  3629  0 May28 tty1     00:03:54 lxpanel --profile LXDE-pi

pi        3648     1  0 May28 tty1     00:00:00 /usr/lib/arm-linux-gnueabihf/lxpolkit

pi        3672     1  0 May28 tty1     00:00:05 /usr/lib/arm-linux-gnueabihf/libmenu-cache1/

pi        5349  3629  0 09:11 tty1     00:00:01 pcmanfm --desktop --profile LXDE-pi

pi        6139  5752  0 13:42 pts/0    00:00:00 ps -af



Below is a description of the items shown in the result data.



항목

설명

PID

process id

PPID

Process id of the parent process

C

CPU Usage of Process

STIME

Process start time

TTY

Terminal with process attached

UID

user id

TIME

CPU time used since task started

CMD

Command and argument that executed the process



When many processes are displayed with "ps" command, you can use "grep" command to select only the data you want from the output data to select only the desired process. The following is a list of processes related to <Motion> program from the entire process list output by "ps" command.



pi@raspberrypi ~ $ ps -ef | grep motion

motion    6835     1  1 19:07 ?        00:01:19 /usr/bin/motion

pi        7053  6586  0 20:16 pts/0    00:00:00 grep --color=auto motion




19.1.1.4    System Monitoring with Desktop Window



When accessing Raspberry Pi's Desktop window, Task Manager can be used to monitor the system through Desktop window. If you run Application Menu Menu àAccessories àTask Manager, the Task Manager's screen appears as shown bellow.

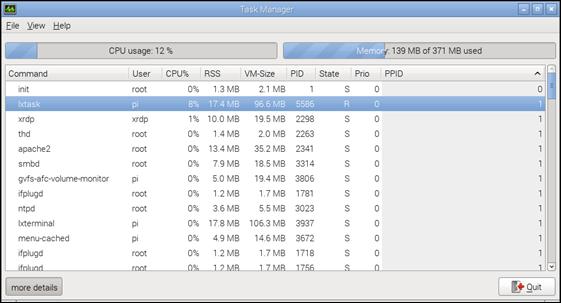

Figure 19‑2 Desktop window [Task Manager]



This program shows the current state of resources such as CPU and memory of the system, and shows information about the type of task that the user wants among various tasks currently being executed.



You can see that the information on the screen is updated continuously with new contents over time even if the user does not give special instructions. The time interval to be updated can be changed in menu View àPreferences.

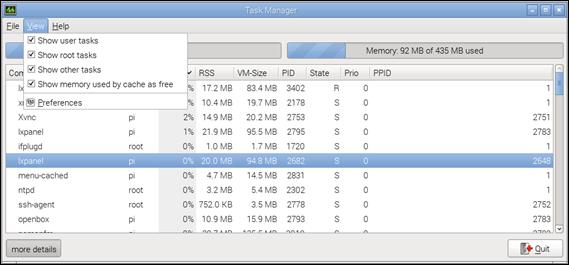

Also, you can selectively check various kinds of tasks by using menu View at the top as shown in the screen below.
