25.2   GPIO Details



25.2.1  GPIO Device



25.2.1.1    GPIO Pin Layout



Since Raspberry Pi B+ model, Raspberry Pi board has a 40-pin GPIO connector with 2 male headers arranged on the left side of SD card slot. The spacing between each header is 2.54 mm (0.1 inches), which is one of the standard spacings used in electronics and is the standard spacing for prototyping platforms including stripeboard and breadboard.

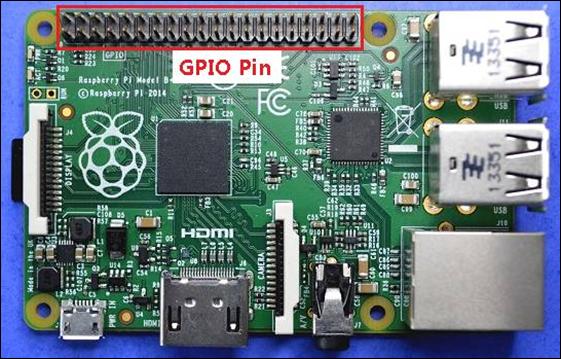

The following is a picture of the GPIO Pin installed in Raspberry Pi.


Figure 25‑1 Raspberry Pi GPIO pin






25.2.1.2    List and Function of GPIO Pin

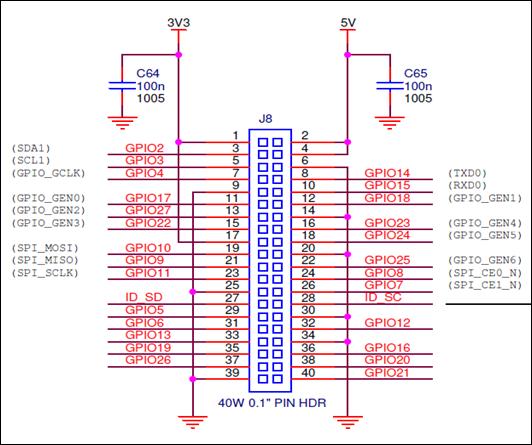

The following is a summary of the individual names and functions of GPIO pins.


Figure 25‑2 Raspberry Pi GPIO pin layout 1

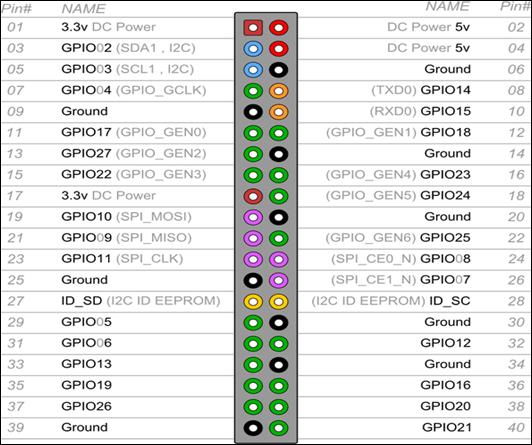

The following is a summary of the individual names and functions of GPIO Pins in different forms.




Figure 25‑3 Raspberry Pi GPIO pin layout 2



The following table summarizes GPIO pins in the order.



Board

BCM IO

Function

Description

1

Power

3.3V

2

power

5.0V



3

GPIO 2

I2C SDA1

Data. 1.8k pull-up resistor

4

power

5.0V

5

GPIO 3

I2C SCL1

Clock. 1.8k pull-up resistor

6

DNC

Ground



7

GPIO 4

GPIO_GCLK



8

GPIO 14

UART TXD0

transmit

9

DNC

Ground



10

GPIO 15

UART RXD0

receive

11

GPIO 17

GPIO_GEN 0



12

GPIO 18

GPIO_GEN 1

PCM_CLK/PWM0

13

GPIO 27

GPIO_GEN 2



14

DNC

Ground



15

GPIO 22

GPIO_GEN 3



16

GPIO 23

GPIO_GEN 4



17

Power

 3.3V

18

GPIO 24

GPIO_GEN 5



19

GPIO 10

SPI_MOSI

Master Out, Slave In

20

DNC

Ground



21

GPIO 9

SPI_MISO

Master In, Slave Out

22

GPIO 25

GPIO_GEN 6



23

GPIO 11

SPI_SCLK

Serial Clock

24

GPIO 8

SPI_CE 0_N

Channel Enable 0. Slave Select (SS)

25

DNC

Ground



26

GPIO 7

SPI_CE 1_N

Channel Enable 1. Slave Select (SS)

27

ID SD



I2C ID EEPROM

28

ID SC



I2C ID EEPROM

29

GPIO 5





30

DNC

Ground



31

GPIO 6





32

GPIO 12



PWM0

33

GPIO 13



PWM1

34

DNC

Ground



35

GPIO 19



PCM_FS/PWM1

36

GPIO 16





37

GPIO 26





38

GPIO 20



PCM_DIN

39

DNC

Ground



40

GPIO 21



PCM_Dout

Table 25‑1 Raspberry Pi GPIO pin layout 3
