Raspberry Pi_Eng_09.5.2 Configuration Method for Boot Startup Screen

Posted on July 25, 2017September 20, 2017 by realomega


Published Book on Amazon


All of IOT Starting with the Latest Raspberry Pi from Beginner to Advanced – Volume 1
All of IOT Starting with the Latest Raspberry Pi from Beginner to Advanced – Volume 2


출판된 한글판 도서


최신 라즈베리파이(Raspberry Pi)로 시작하는 사물인터넷(IOT)의 모든 것 – 초보에서 고급까지 (상)
최신 라즈베리파이(Raspberry Pi)로 시작하는 사물인터넷(IOT)의 모든 것 – 초보에서 고급까지 (하)


Original Book Contents


9.5.2     Configuration Method

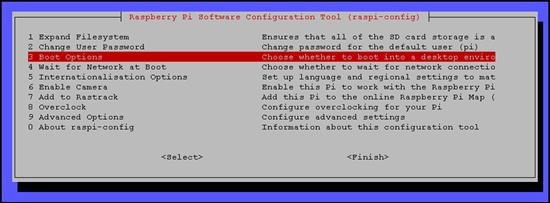

To configure, use the [Boot Option] item in the following screen.





Figure 9‑7 Setting boot option in "raspi-config" command

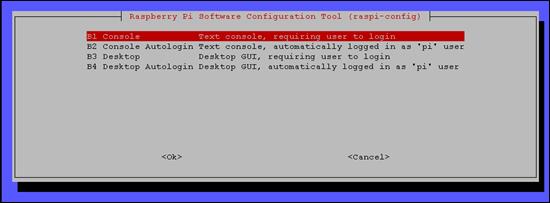

When you select the item and press the [Enter] button, the next screen to select the detail item starts.






Select the item by the [arrow] button and press the [Enter] button, and then the setting is completed.



The contents of each selection option are as follows:

■    B1 Console                     Text console, requiring user to login

It starts with the local Shell Terminal connection at boot time. The login is not done yet.



■    B2 Console Autologin          Text console, automatically logged in as 'pi' user

It starts with the local Shell Terminal connection at boot time. It automatically logon to "pi" user account.



■    B3 Desktop                     Desktop GUI, requiring user to login

It starts with the local Desktop window at boot time. The login is not done yet.



■    B4 Desktop Autologin          Desktop GUI, automatically logged in as 'pi' user

It starts with the local Desktop window at boot time. It automatically logon to "pi" user account.



When the setting is completed, the working screen for changing the setting contents is displayed briefly, and then the screen returns to the initial screen.



pi@raspberrypi ~ $ sudo raspi-config

update-rc.d: using dependency based boot sequencing

insserv: warning: script 'K01tightvnc' missing LSB tags and overrides

insserv: warning: current start runlevel(s) (3 4 5) of script `lightdm' overrides LSB defaults (2 3 4 5).

insserv: warning: current stop runlevel(s) (0 1 2 6) of script `lightdm' overrides LSB defaults (0 1 6).

insserv: warning: script 'tightvnc' missing LSB tags and overrides



When you select [Finish] from the first menu screen and press the [Enter] button, the screen to decide whether to reboot is displayed. If you reboot here, the system will be rebooted. At this point, you will start with the Shell Terminal screen or the Desktop window screen according to the setting.












RaspberryPi-English"raspi-config" Command, apache, Boot Startup Screen, debian, Default User Account "pi", interface, iot, linux, mysql, php, raspberry pi, raspbian, sensor, System configuration
