23.3.3  How to Use Sonic Pi

23.3.3.1    Step 1 - First Sounds with Sonic Pi

First, select [Workspace 1] and enter the following. Then click [Run] button. What happens one day? Then you will hear a beep sound.

play 60

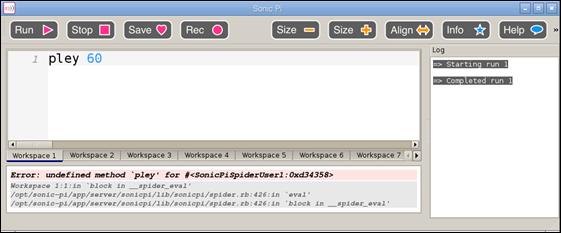

At this time, type the following and press [Run] button. This time you will hear no sound and you will see the area to display error message below the workspace. This indicates that there is an error when the entered command is wrong.

pley 60

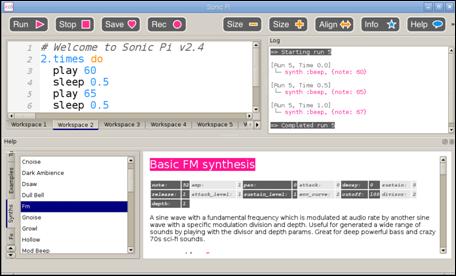

Figure 23‑5 Sonic Pi workspace

Now try again to type the following and press [Run] button to execute it.

play 60

play 67

play 69

Then the computer will play a note in sequence one by one, but they sound so fast that they sound like they are playing at the same time, so it is difficult to distinguish exactly what they are. So let's try to distinguish between each note with some pause time. To do this, you can use the following command after each "play" statement.

sleep 1

The number specified after "sleep" statement represents time in seconds. Number "1" means 1 second, and you can use a decimal point like "0.5". Now, to create a clean tune,  type the following with "play" and "sleep" statements, and press [Run] button to listen to the sound.

play 60

sleep 0.5

play 67

sleep 0.5

play 69

sleep 0.5

23.3.3.2    Step 2 - Loop a Tune

Now that you have studied the basics of Sonic Pi, let's write some code to create a tune. Select [Workspace 2] and enter the following code.

play 60

sleep 0.5

play 62

sleep 0.5

play 64

sleep 0.5

play 60

sleep 0.5

When you press [Run] button, it play a tune. By the way, if this part of a song needs to be played twice, how can you repeat it twice? The simplest way would be to type the sentence twice. There is another way to do it, which is the loop processing we are going to explain.  Enter "do" – "end" statement as follows, enter all of the above commands between "do" statement and "end" statement.

2.times do

     statement

end

Finally, enter the following and press [Run] button to execute it. You can see that the entire contents are played twice.

2.times do

  play 60

  sleep 0.5

  play 62

  sleep 0.5

  play 64

  sleep 0.5

  play 60

  sleep 0.5

end

In the above example, the sentences between "do" – "end" are indented on the right. This is intended to better align the program code so that you can read the program code easier and easily find the bug if there is an error in running it later. You can just double-click on the space bar to indent a line of code.

In the previous example, we used to repeat the notes by specifying a repetition number, but if you want to repeat forever, use "loop do" and "end" statements. In other words, use the following format.

loop do

  play 60

  sleep 0.5

end

23.3.3.3    Step 3 - MIDI Note and Music Note

The numerical value we specify after "play" statement in front is a certain note. In fact they are MIDI notes. This means we need to convert it into a Sonic Pi MIDI note to play a song that is played on the piano. There are the following relations between two notes.

Table 23‑1 Relationship between Music note and MIDI note value

If you want to create a MIDI note for a song you want to play, it will be very annoying. Fortunately, Sonic Pi allows you to use standard sheet music notation too.

This time, let's type the followings in new workspace. Then try playing and checking if it is  same as the one you wrote with the previous MIDI note.

play :c4

sleep 0.5

play :d4

sleep 0.5

play :e4

sleep 0.5

play :c4

sleep 0.5

23.3.3.4    Change Sound Using Synthesizer

Now it is time to make the music tune sound more interesting. We can make these sounds by changing the synthesizer sound. The default synth on Sonic Pi is called beep. To use a different synth, you can use a statement of the following format above the sequence of code where you want to use it.

use_synth :name of synth

The example below is doing task using synth "fm".

use_synth :fm

2.times do

  play 60

  sleep 0.5

  play 67

  sleep 0.5

end

■    Available Synths

Sonic Pi includes a number of clean synths in advance. To view its contents, press [Help] button on the top of the screen to display [Help] window, and select [Synths] from the tab on the left. Then click on the desired synth name for more information on how to use it.

23.3.3.5    Step 5 - Use Samples

In Sonic Pi, you can create music using only notes, or use samples to create music. Sample is a pre-recorded music or tune, and can be used directly putting it in the music. This makes it very simple to make your music sound amazing!.

To use the sample, add the following code statement in the sequence of  your music program you want to use it.

sample :name of sample

In the example below, we worked with a sample called "loop_amen".

2.times do

  sample :loop_amen

  sleep 1.753

end

■    Available samples

Sonic Pi contains many samples. To see what is there, press [Help] button on the top of the screen to display [Help] window, and select [Samples] from the tab to the left. Then click on the name of the desired sample for more information on how to use it.

23.3.3.6    Step 6 - Playing Two Tunes at the Same Time

Music often has a repeating backing track with a separate melody played over the top. We have played only one tune so far, and now we will try to play two tune at the same time.

Open a new workspice to work on. When you play two tunes simultaneously, the code you want to use must be between "in_thread do" and "end" statement. Enter the desired tune under "in_thread do".

in_thread do

   codes for tune

end

Here, we used the sample as a backing track. This first '"hread" will work as a melody of our music. Below it, enter the code to be used as backing track or baseline as follows.

in_thread do

  loop do

    sample :loop_amen

    sleep 1.753

  end

end

in_thread do

  16.times do

    play 75

    sleep 1.753

    play 74

    sleep 0.25

  end

end

When all the works are completed, press [Run] button to start playing. You will then hear two threads playing at the same time.

23.3.3.7    Step 7 - Live Code!

Sonic Pi was developed as a live coding platform of music, so the code can be manipulated, changed, and adapted in real time. This means that coder can play their own songs rather than play pre-made programs. So, should not we try it?

In the new workspace, type the following.

define :play_my_synth do

  use_synth :prophet

    play 50, attack: 0.2, release: 1.3

  sleep 0.5

end

loop do

play_my_synth

end

Then try to play the following program. While playing, make a comment by typing "#" symbol at the beginning of each line as shown below. Check how the performance changes.

# loop do

#   play_my_synth

# end

Next, change another part of the code and try playing again. Then new music is played. Now you are playing really cool.
